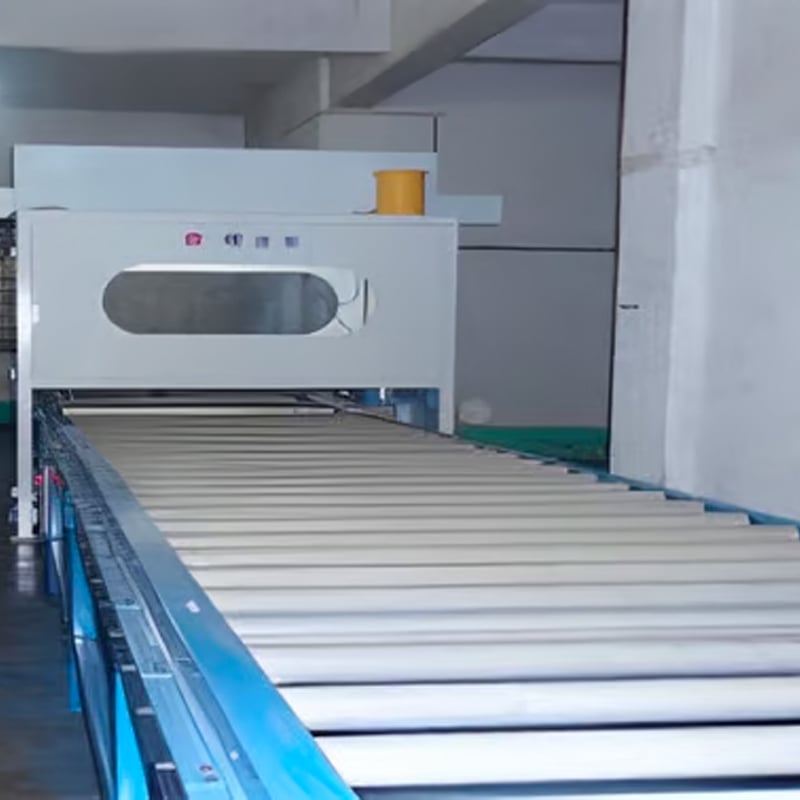

Building material board glue machine
Professional foreign trade factory: engaged in foreign trade for 30 years, factory of 40,000㎡, first-class multi-station processing center
Highly efficient customer service team:24 hours to provide uninterrupted after-sales service, within 2 hours to reply to your message!
Factory direct price concessions: international recognition of quality, CE certification, ISO9001 certification, apply for patents of all kinds of more than 50 items
Product Detail
Key Features:
1. Scope of application: The foaming machine for building material boards is suitable for industries such as building materials, furniture, textiles, automobiles, and sporting goods.
2. Mainly applicable: automatic spraying of aluminum honeycomb panels, thermal insulation panels, decorative panels, aluminum corrugated panels, stone honeycomb panels and other building materials industries.
3. Applicable glue: one-component glue (such as: polyurethane glue, epoxy glue), the viscosity range is 100 – 15000mPa.s two-component glue (such as: polyurethane glue, epoxy glue), the viscosity range is 100 – 15000mPa. s.
4. Function introduction: The glue sprayer sprays the glue through high-pressure gas after atomization. The amount of glue sprayed is determined by the speed of the metering pump and the size of the glue nozzle. The degree of atomization is adjusted by controlling the atomization air pressure.
5. Glue spraying function: The glue spraying machine is used to accurately measure single-component glue or two-component glue, and evenly spray it on the surface of the workpiece.
6. Equipped with functions: according to the characteristics of the glue, it can be equipped with functions such as automatic feeding, automatic heating, automatic cleaning, nitrogen filling protection, and overpressure alarm.
7. Working principle: Since the glue should not be in too much contact with the air, the entire glue circuit is designed as a closed type, raw material large glue barrel (200L) → chemical automatic feeding pump → main engine intermediate tank → filtration → precision metering → spraying.
Technical parameters:
|
parameter |
unit |
|
The main function |
Longitudinal movement of the two-axis actuator (X axis: the lateral movement of the spray head on the line rail; Y axis: the upper and lower manual adjustment of the spray head); Built-in automatic glue application program (the glue spray track is determined by the manufacturer, and the workpiece margin can be adjusted Manual setting); The left and right stations are automatically cleaned after gluing; The glue storage bucket has automatic heating function |
|
Power supply |
Voltage 380V/220V, 50Hz |
|
Maximum glue output |
8kg/min |
|
Coating width range |
0～1250mm |
|
positioning accuracy |
±5mm/10000mm |
| Low pressure foaming machine | volume 30L |
| Automatic cleaning tank | volume 18L |
| Electronic control system | Independent control; automatic feeding system; with overcurrent, overload, short circuit protection |
| Service life | Except for wearing parts, the design life of the equipment is ≥ 10 years |
Building Material Board Glue Machine: The Ultimate Solution for Efficient Glue Application
- Unparalleled Precision and Efficiency
- Flexible Application Settings
- Wide Compatibility
- Time-Saving Solution
- Easy Maintenance and Cleaning
- Durable and Reliable
- Enhanced Safety Features
