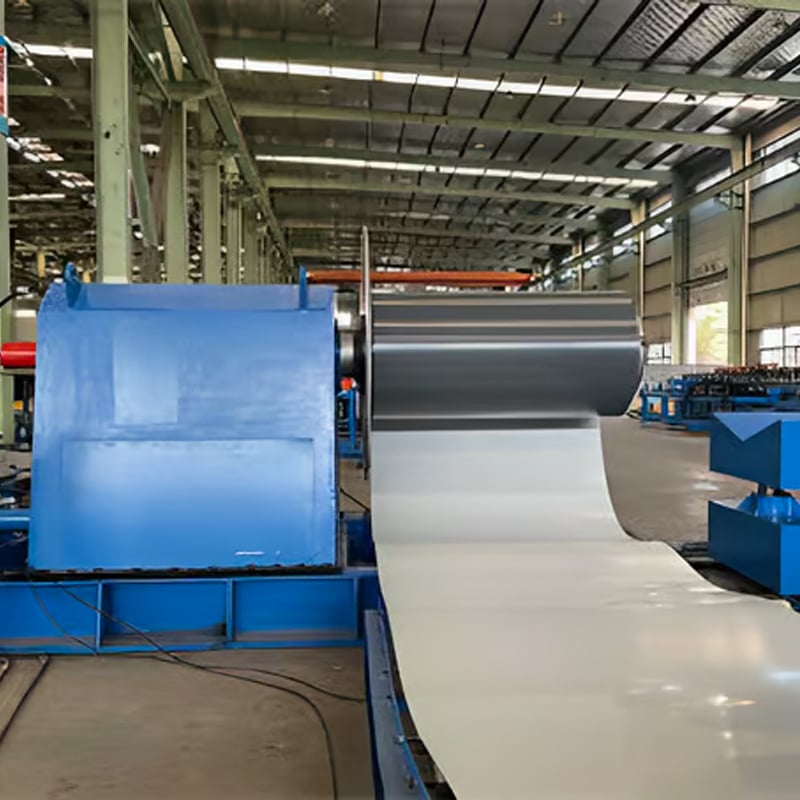

Hydraulic uncoiler
Professional foreign trade factory: engaged in foreign trade for 30 years, factory of 40,000㎡, first-class multi-station processing center
Highly efficient customer service team:24 hours to provide uninterrupted after-sales service, within 2 hours to reply to your message!
Factory direct price concessions: international recognition of quality, CE certification, ISO9001 certification, apply for patents of all kinds of more than 50 items
Product Detail
Key Features:
1. Each uncoiler drives the sprocket through the hydraulic motor, and drives the main engine through the sprocket, so that the steel coil rotates with the main shaft.
2. To achieve the purpose of auto uncoiler, the base and frame of the uncoiler are all welded by rectangular tubes, which fully guarantees the rigidity of the machine.
3. Reel: four pieces of nesting (shoes), available in 508 and 610 sizes, when 508 steel coil is switched to 610 inner hole steel coil, four arc plates are added to the original uncoiler to automatically support Ttght and constant tension control.
4. Transmission system: forward and reverse to realize the rewinding and unwinding, the unwinding mandrel is driven by the motor and the reducer to realize the automatic opening of the steel coil, and it can also be used for the recovery of the plate that has not been processed; when the material is automatically opened, it can maintain same tempo as production.
5. The pressing deviceis to swing the pressing arm through the cylinder. When the cylinder rises, the pressing arm is loosened; when the cylinder is lowered, the pressing arm is pressed tightly. The adjustment of the coil center of the uncoiler is realized by the hydraulic cylinder, which is convenient to adjust and easy to operate; when the coil is automatically uncoiled, the pressing arm must loosen the steel coil, and when the machine stops, the pressing arm must press the steel coil；
6. Lifting trolley: The lifting trolley is driven by the motor to make the trolley walk along the guide rail, and the lifting device is driven by the hydraulic cylinder through the lifting platform for the connecting rod to complete the loading and unloading actions. The lifting platform and the walking platform adopt the mixed welding structure of rectangular tube and steel plate, and the appearance is beautiful.
Technical parameters:
|
Parameter |
Umit |
Remark |
|
Uncoil speed |
m/min |
0-15m/min |
|
Inner diameter of steel coil |
mm |
508mm,610mm |
|
Outer diameter of steel coil |
mm |
1200mm |
|
Steel coil thickness |
mm |
0.4-0.8mm |
|
Loading width (roll width) |
mm |
Max1250mm |
| Uncoiler hydraulic system pressure | kw | 3kw |
| Pneumatic hydraulic | Mpa | 6.3Mpa |
High-Quality Hydraulic Uncoiler for Efficient and Smooth Coil Handling
Investing in our Hydraulic Uncoiler means investing in reliability and low-maintenance performance. With proper care and regular maintenance, this machine will continue to deliver exceptional results year after year. Its high-quality components and intelligent design minimize the need for repairs, reducing downtime and maximizing productivity.
Hydraulic uncoiler, coil handling, unwinding, industrial, efficiency, productivity, durable construction, adjustable speed, tension control, safe design, user-friendly, space-saving, versatile, quiet operation, coil loading, unloading, reliable performance, low maintenance High-Quality Hydraulic Uncoiler for Efficient and Smooth Coil Handling Revolutionize your coil handling operations with our top-of-the-line Hydraulic Uncoiler. Equipped with advanced features and superior performance, this machine ensures effortless and precise coil unwinding, while providing a safe and user-friendly experience. Its durable construction, adjustable speed, and versatile design make it a valuable addition to any industrial setting.
