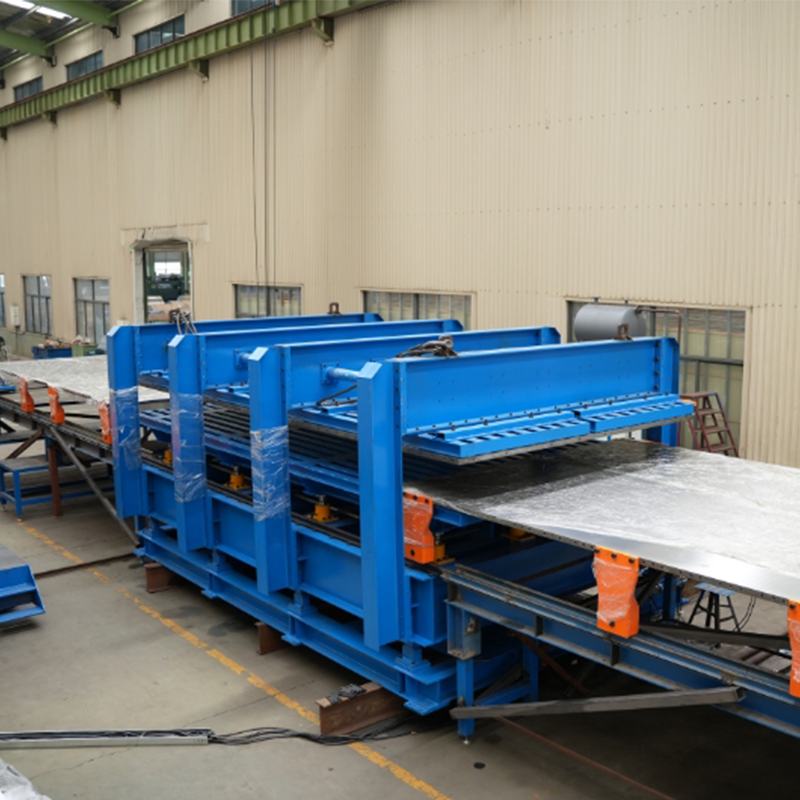

Carriage board laminating machine
Professional foreign trade factory: engaged in foreign trade for 30 years, factory of 40,000㎡, first-class multi-station processing center
Highly efficient customer service team:24 hours to provide uninterrupted after-sales service, within 2 hours to reply to your message!
Factory direct price concessions: international recognition of quality, CE certification, ISO9001 certification, apply for patents of all kinds of more than 50 items
Product Detail
Key Features:
1. The fixed load template is made of steel plate with a thickness of 80mm, while the movable load template is made of steel plate with a thickness of 80mm, ensuring that it will not deform after long-term use when making 250mm polyurethane color steel plate. After finite element analysis, its working strength is about 1.3 times the rated working coefficient.
2. The temperature of the loading template is heated by thermal oil, and the temperature of each template is controlled by a temperature control proportional valve. More precise temperature control, saving energy consumption.
Technical parameters:
| Project | parameters |
| Width | 1200mm-3500mm |
| Length | 3000-14000mm |
| Number of template layers | 2 floors, 1 in and 1 out (bilateral in and out type) |
| production efficiency | 30-40min/cycle |
| Surface roughness of loading template | ≤Ra1.6mm |
| Lifting error of upper and lower templates | ±0.5mm |
| Product surface smoothness | ±0.05mm/㎡ |
| Parallelism between the upper and lower planes of the loading template | ±0.05mm |
| Moduli space | 0～300mm |
| Loading template temperature | Room temperature-90 ° C adjustable |
| Heat transfer oil temperature | Room temperature-300 ° C adjustable |
| Heating mold temperature machine power | 90-180kw (infinite adjustment) |
| Loading template movement speed | 20 meters/minute |
| Lifting and lowering speeds of lifting and pressing platforms | 10mm/s |
| The entire machine can tilt at an angle | 0-30 ° adjustable |
Efficient and Reliable Carriage Board Laminating Machine for Superior Results
- Space-Saving Design
- Low Maintenance and Easy Cleaning
- Exceptional Customer Support
- Unmatched Precision and Control
- Speed and Efficiency
- Durable and Long-Lasting
- User-Friendly Interface
- Versatile Application
- Safe and Reliable Operation
